FUEL INJECTOR CATERPILLAR 3406 / 3406B / 3406C / 14.6L ENGINES
$0.00
CALL OR TEXT FOR AVAILABILITY AND PRICING

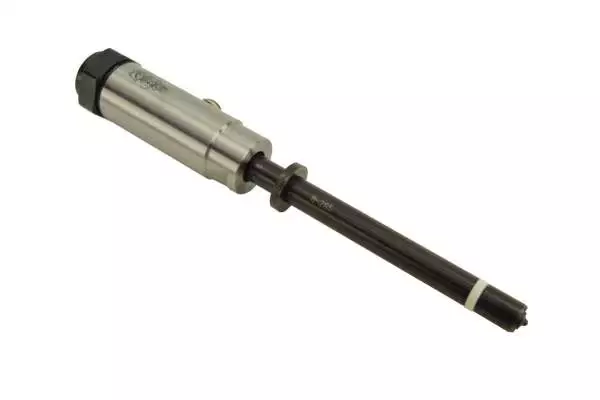

MAIN PICTURE FOR ILLUSTRATION PURPOSES ONLY
Description
FUEL INJECTOR CATERPILLAR 3406 / 3406B / 3406C / 14.6L ENGINES
NEW, SPECIAL ORDER.
OEM REFERENCE: 4W7018.
CHECK OUR PRODUCTS FOR CATERPILLAR ENGINES
YOU WILL NEVER FIND THIS TOP QUALITY PRODUCT AT THIS LOW PRICE!
CATERPILLAR 3406 ENGINE SPECIFICATIONS
Caterpillar is a United States-based manufacturer of industrial and heavy equipment vehicles, engines and parts. The 3406 line of engines is designed for use in heavy boats and can be used alone as a single engine, or in groups to generate mass amounts of power. It can be commonly found in large yachts, cruise ships and freight transportation vessels.
Size and Weight
The 3406 has a total dry weight of 6,819 pounds without any engine accessories installed. Measuring from the end of the engine to the end of the flywheel housing, the length of the engine is 117.28 inches while the overall width is 39.22 inches. It has a total height that measures out to 58.04 inches. The addition of engine accessories available from Caterpillar, such as a different transmission, can slightly add to the size and weight of the generator set.
EngineCID | 893 |
Fuel | Diesel |
Cylinder | 6 |
Bore | 5.400″ |
Stroke | 6.500″ |
Main Torque 180-200 ft/lbs +115-125 degrees |
|
Rod Torque 60 ft/lbs +120 degrees |
|
Head Torque 200, 330, 330 ft/lbs, studs 20 ft/lbs |
|
Intake Valve Lash .015″ cold (.381 mm) |
|
Exhaust Valve Lash .030″ cold (.762 mm) |
FUEL INJECTOR CATERPILLAR 3406 / 3406B / 3406C / 14.6L ENGINES
Additional information
Weight | 0.1 lbs |
---|---|
Dimensions | 5 × 1 × 1 in |
Brand
RELIANCE
Reliance Auto Parts
Reliance Auto Parts - OEM Quality Parts At Greater Savings. We are the Trusted Source For Aftermarket Wholesale New & Remanufactured Diesel Engine & Heavy Duty Equipment Parts.We Support Businesses of All Sizes
Since our foundation, our goal is to provide high-quality replacement gas and diesel engine parts at a competitive price. Today we stock over 100,000 parts across 5,000 unique applications and represent 50 OEM's to ensure we meet all your heavy-duty engine needs.Make | Model | Year | Engine | Fuel |
---|---|---|---|---|
-SEARCH BY ENGINE- | SEARCH BY ENGINE | CATERPILLAR | 3406 / 3406B / 3406C / 14.6L |
