PISTON ASSEMBLY DEUTZ F3L914, F4L914, F5L914, F6L914 ENGINES
$284.06
SET FOR ONE CYLINDER.
In stock
Description
PISTON ASSEMBLY DEUTZ F3L914, F4L914, F5L914, F6L914 ENGINES.
SET FOR ONE CYLINDER.
CYL.BORE: 102MM.

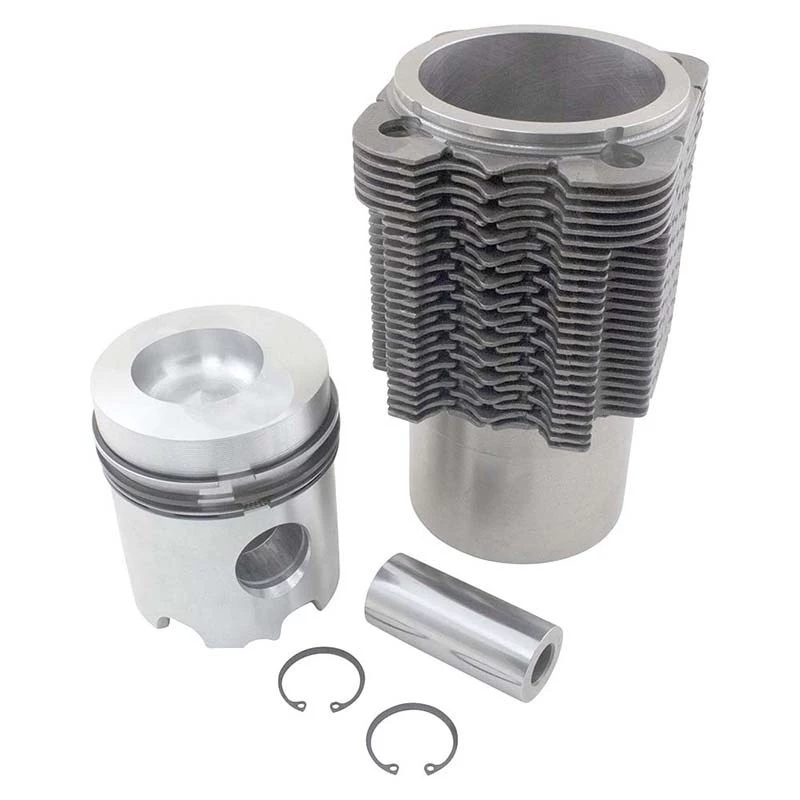

KIT COMPONENTS:
- PISTON.
- PISTON RING SET.
- PISTON PINS.
- CYLINDER LINER.
- RETAINERS.

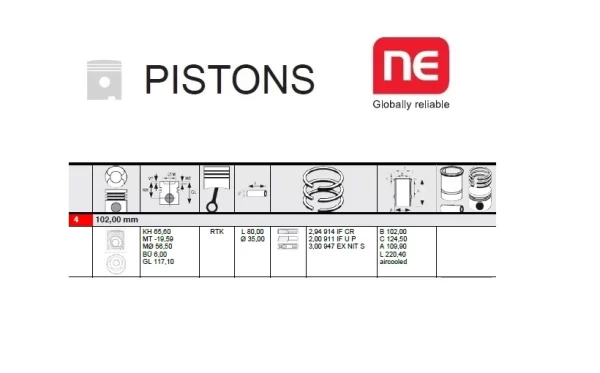

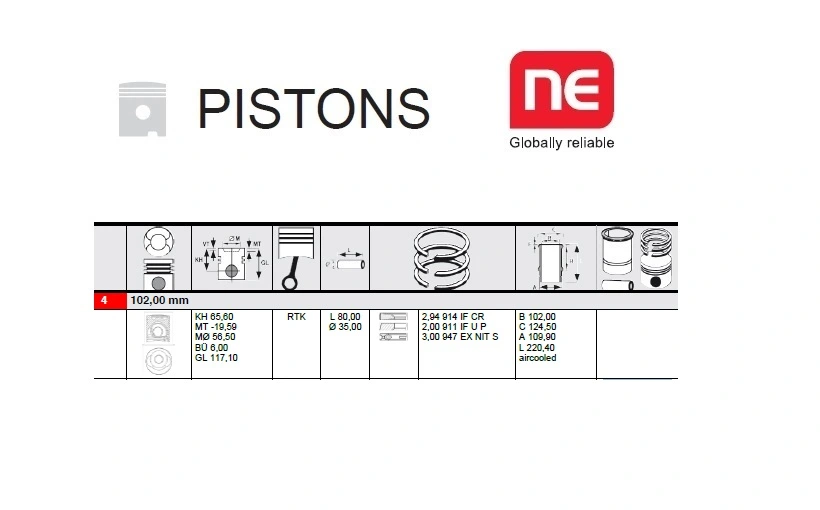

DESCRIPTION:
- PISTONS: (COMPRESSION HEIGHT: 65,60 / BOWL DEPTH: -19,59 / BOWL DIAMETER: 56,50 / TOTAL LENGTH: 117,10)
- PISTON RING SET: (HEIGHT: 2,94 – 2,00 – 3,00)
- PISTON PINS: (LENGTH: 80,00 / DIAMETER: 35,00)
- CYLINDER LINERS: (BORE DIAMETER: 102,00 / FLANGE DIAMETER: 124,50 / FITTING DIAMETER: 109,90 / OVERALL LENGHT: 220,40 / LINER TYPE: AIRCOOLED)
- RETAINERS.
FOR DEUTZ AGROPLUS 60 A, 70 A, 80 A, DEUTZ ENGINE.
ENGINE SPECIFICATIONS:
FUEL DIESEL, STROKE 132MM., CYL.: 3, 4, 5, 6., CYL.BORE: 102MM.
ORIGINAL EQUIPMENT QUALITY MADE IN GERMANY BY NPR EUROPE.
NPR OF EUROPE IS THE OE MANUFACTURER OF PISTON RING SETS FOR ALL MERCEDES BENZ DIESEL AND GASOLINE ENGINES.
YOU WILL NEVER FIND THIS TOP QUALITY PRODUCT AT THIS LOW PRICE!
OEM REFERENCES: 0423-4939, 04234939.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 10 × 1 in |
Brand
NPR of Europe GmbH
NPR of Europe GmbH is a subsidiary of the Japanese engine parts manufacturer NPR – Nippon Piston Ring Co. Ltd. Competent advice and development; product quality and reliable logistics set it apart as an original equipment manufacturer for many well-known engine manufacturers in Europe.
Its piston ring sets are being used successfully across the globe in all categories of engines – be it small two-stroke engines or large lorry diesel engines.
| Make | Model | Year | Engine | Fuel |
|---|---|---|---|---|
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F3L914 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F4L914 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F5L914 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F6L914 | |
| DEUTZ | AGROPLUS 60 A | DEUTZ | F3L914 | |
| DEUTZ | AGROPLUS 70 A | DEUTZ | F4L914 | |
| DEUTZ | AGROPLUS 80 A | DEUTZ | F4L914 |
