Why Do Head Gasket Fail?



Why do the gaskets fail? Head gaskets are designed and manufactured to perform at 100% reliability. So why would they fail?

Here are a few reasons. Head gasket failures seem to be more prevalent after the first time the head has been removed. This is especially true since the introduction of substitute materials to replace asbestos. As a result, materials and assembly procedures have changed to assure optimal performance of head gaskets. Following is a list of possible causes for failures:

WHY DO GASKETS FAIL?

LINER STAND-OUT

Cylinder liner height above block must be to specification. Also, no more than 0.002 in. (0.05mm) variation between adjacent cylinders.



IMPROPER PREPARATION

Clean, dry, oil free deck surface without adhesives is essential. It is a good idea to restore the threads and pre-lube capscrews before installing.



Head_Gasket_Failures_Photos by Jun Chen
Photos by Jun Chen > From DSPORTMAG.COM

👉 Shop Here Original Quality Gaskets and Gasket Set 📣



IMPROPER ASSEMBLY

Locating head with aid of guide studs prevents damage to gasket while aligning bolt holes.



TIGHTENING SEQUENCE

Some new procedures have been adopted. Refer to current component technical manual.



HEAD CAPSCREW TORQUE

Four systems are in use for Waterloo block. Depends on bolt length and design. Refer to technical manual.



OVERHEATING

Heating damage to gasket can cause failure.

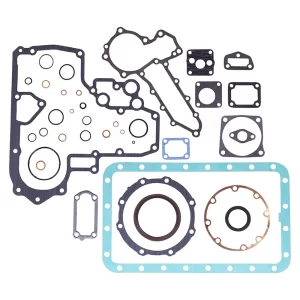

Conversion gasket set kubota v1903 engine, for bobcat skid loader 751. Oem 1g970-99362, 1g97099362.

👉 Shop Here Original Quality Gaskets and Gasket Set 📣





OVERSPEEDING

Increased cylinder pressure can cause gasket to fail due to overspeeding engine under load.



OVERFUELING

Increased power increases cylinder pressure (BMEP) which can damage gasket.



HEAD AND BLOCK FLATNESS

Check face for straightness both lengthwise and across the width.



NEW CAPSCREWS

Use new head capscrews if existing ones are damaged or previously taken to yield.

head_bolt_set_om642_sprinter_6396059_001
Head Bolts/Capscrew





👉 Shop Here Original Quality Bolts for your Engine 📣





INCORRECT RESURFACING

Micro-finish according to specifications.



SHIPPING DAMAGE

Head gaskets can be easily damaged by improper handling during shipment (bending). Inspect carefully.



BAD GASKET

It is possible to have a manufacturing defect. Inspect new gaskets carefully.

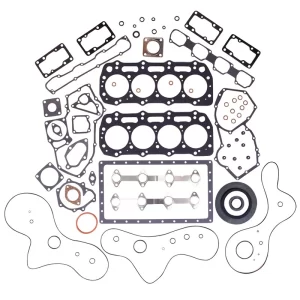

rp1353-full-gastek-set

👉 Shop Here Original Quality Gaskets and Gasket Set 📣
